COLD WIRE TORCHES MACHINE MOUNTED
When these torches are used in conjunction with the WF-5 wire feeder, complete automatic feeding of the filler wire is possible

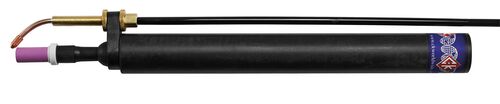

CWM2312 MACHINE COLD WIRE TORCH WATER COOLED | 300 AMP
| Head Style | Cable | Wire Size / Typ | Order # | Specifications |
| BARREL FRONT LOAD |
12-1/2 ft. (3.8m) Special length cables are available upon request. |
.030" (.8mm) / Soft | CWM2312-030S | 300 amp ACHF or DCSP @ 100% 18" (45.7cm) 6 oz. (170gm) 1-3/8" (35mm) O.D. Barrel 2 Series Head Accessories |
| .030" (.8mm) / Hard | CWM2312-030H | |||
| .035" (.9mm) / Soft | CWM2312-035S | |||
| .035" (.9mm) / Hard | CWM2312-035H | |||
| .045" (1.1mm) / Soft | CWM2312-045S | |||
| .045" (1.1mm) / Haft | CWM2312-045H | |||
| 1/16" (1.6mm) / Soft | CWM2312-116S | |||
| 1/16" (1.6mm) / Soft | CWM2312-116H |

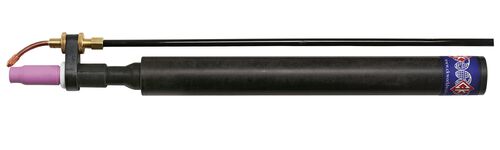

CWM3512 MACHINE COLD WIRE TORCH WATER COOLED | 350 AMP
| Head Style | Cable | Wire Size / Typ | Order # | Specifications |
| BARREL FRONT LOAD |
12-1/2 ft. (3.8m) Special length cables are available upon request. |
.030" (.8mm) / Soft | CWM3512-030S | 350 amp ACHF or DCSP @ 100% 18" (45.7cm) 6 oz. (170gm) 1-3/8" (35mm) O.D. Barrel 2 Series Head Accessories |
| .030" (.8mm) / Hard | CWM3512-030H | |||
| .035" (.9mm) / Soft | CWM3512-035S | |||
| .035" (.9mm) / Hard | CWM3512-035H | |||
| .045" (1.1mm) / Soft | CWM3512-045S | |||
| .045" (1.1mm) / Haft | CWM3512-045H | |||
| 1/16" (1.6mm) / Soft | CWM3512-116S | |||
| 1/16" (1.6mm) / Soft | CWM3512-116H |

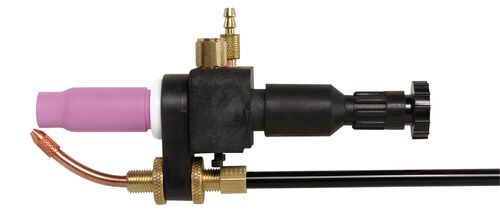

CWM412 MACHINE COLD WIRE TORCH WATER COOLED | 400 AMP
| Head Style | Cable | Wire Size / Typ | Order # | Specifications |
| SCREW MOUNTED FRONT AND BACK LOAD |
12-1/2 ft. (3.8m) Special length cables are available upon request. |
.030" (.8mm) / Soft | CWMT412-030S | 400 amp ACHF or DCSP @ 100% 4-1/16" (10.3cm) 6-1/4 oz. (177gm) Machine Series Head Accessories |
| .030" (.8mm) / Hard | CWMT412-030H | |||
| .035" (.9mm) / Soft | CWMT412-035S | |||
| .035" (.9mm) / Hard | CWMT412-035H | |||
| .045" (1.1mm) / Soft | CWMT412-045S | |||
| .045" (1.1mm) / Haft | CWMT412-045H | |||
| 1/16" (1.6mm) / Soft | CWMT412-116S | |||
| 1/16" (1.6mm) / Soft | CWMT412-116H |

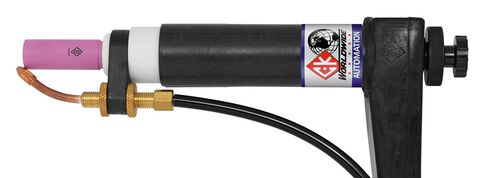

CWMT512 MACHINE COLD WIRE TORCH WATER COOLED | 500 AMP
| Head Style | Cable | Wire Size / Typ | Order # | Specifications |
| 7" (17.8cm) or 18" (45.7cm) Barrel* FRONT AND BACK LOAD |
12-1/2 ft. (3.8m) Special length cables are available upon request. |
.030" (.8mm) / Soft | CWMT512-7-030S | 500 amp ACHF or DCSP @ 100% 7" (17.8cm) 12 oz. (340gm) Machine Series Head Accessories |
| .030" (.8mm) / Hard | CWMT512-7-030H | |||
| .035" (.9mm) / Soft | CWMT512-7-035S | |||
| .035" (.9mm) / Hard | CWMT512-7-035H | |||
| .045" (1.1mm) / Soft | CWMT512-7-045S | |||
| .045" (1.1mm) / Haft | CWMT512-7-045H | |||
| 1/16" (1.6mm) / Soft | CWMT512-7-116S | |||
| 1/16" (1.6mm) / Soft | CWMT512-7-116H |
